Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine
Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

बड़ी छवि :  Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन हेबेई
ब्रांड नाम: CHBEST
प्रमाणन: CE/BV/SGS
मॉडल संख्या: XY25X49
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
पैकेजिंग विवरण: नग्न मशीन के लिए प्लास्टिक फिल्म
प्रसव के समय: 30-40 दिन
आपूर्ति की क्षमता: 20 सेट/महीना

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

वर्णन
प्रोडक्ट का नाम: डबल लाइन स्टड और ट्रैक स्टील प्रोफाइल कोल्ड रोल बनाने की मशीन कस्टमज़ाइड मशीन पंचिंग प्रकार: हाइड्रोलिक
नियंत्रण प्रणाली: स्वीकृति कटिंग प्रकार: उड़ती हुई आरी
गारंटी: 2 साल जीवनभर: 10 वर्ष
प्रमुखता देना:

double line stud track machine

,

steel profile roll forming machine

,

customized cold roll forming machine

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine



Working Flow:

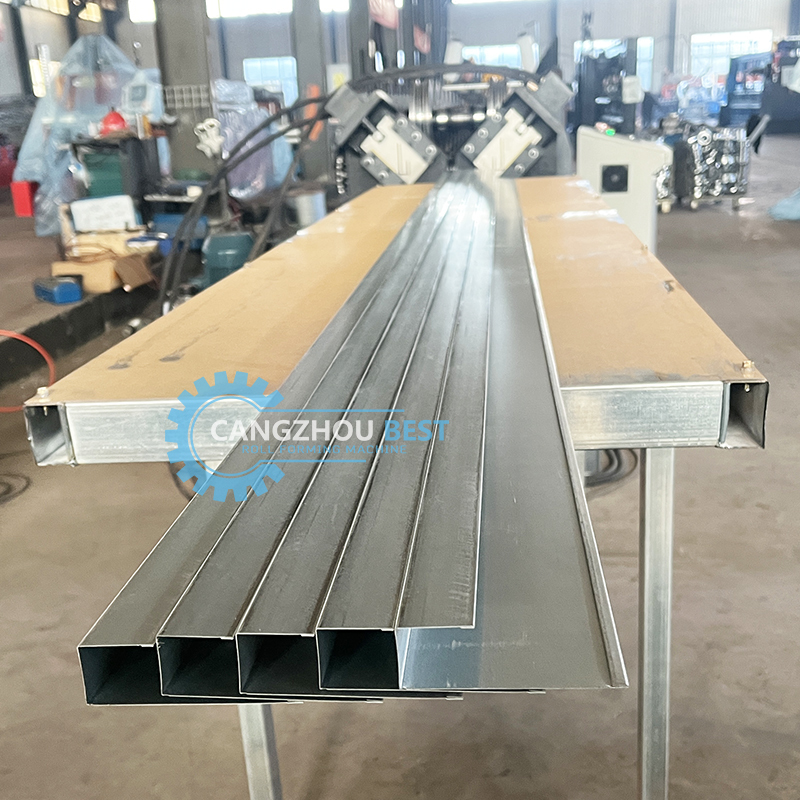

Decoiler-----feeding-----roll forming------cutting-----finished product



Machine Component:



No. Name Unit Qty
1 Manual decoiler set 1
2 forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 cutting device set 1
6 Output table set 1



Machine Specifications:



1. DECOILER


(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs

(5)Type:manual

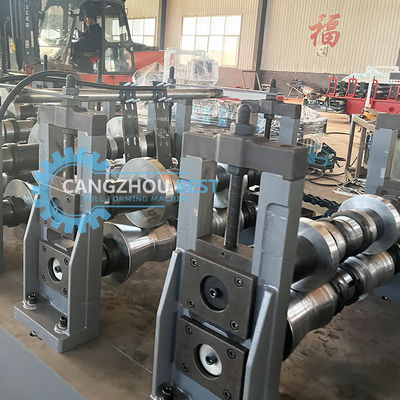

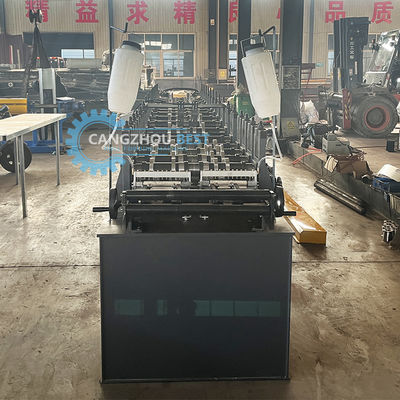

2. ROLL FORMING MACHINE


(1) Material Thickness: 0.5-1.0mm PPGI and GI

(2) NO. of roller Stations:14+14 groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 60mm

(6) Frame panel : casting type

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5kw

(9)Driven type: chain

(10)Speed: 8-12m/min



Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine 0

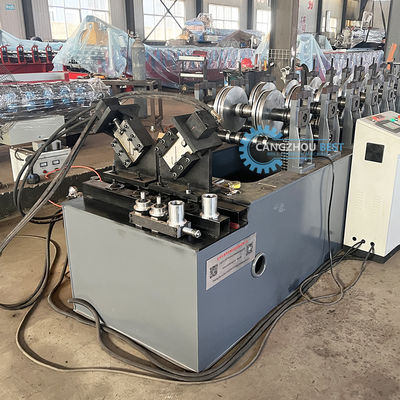

3. CUT-OFF DEVICE



(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC58 – 62°

(3)Cut-Off Type: Mould Cutting

(4)Motor for Hydraulic Stand: 3kw


4.PLC CONTROL BOX


(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



5. HYDRAULIC PUMP STATION


(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand



Warranty

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.



Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine 1

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine 2
