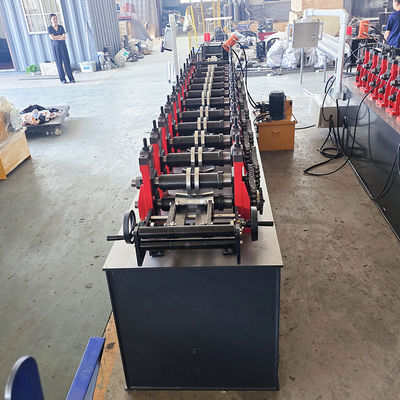

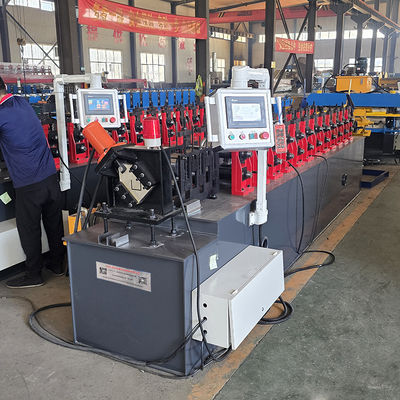

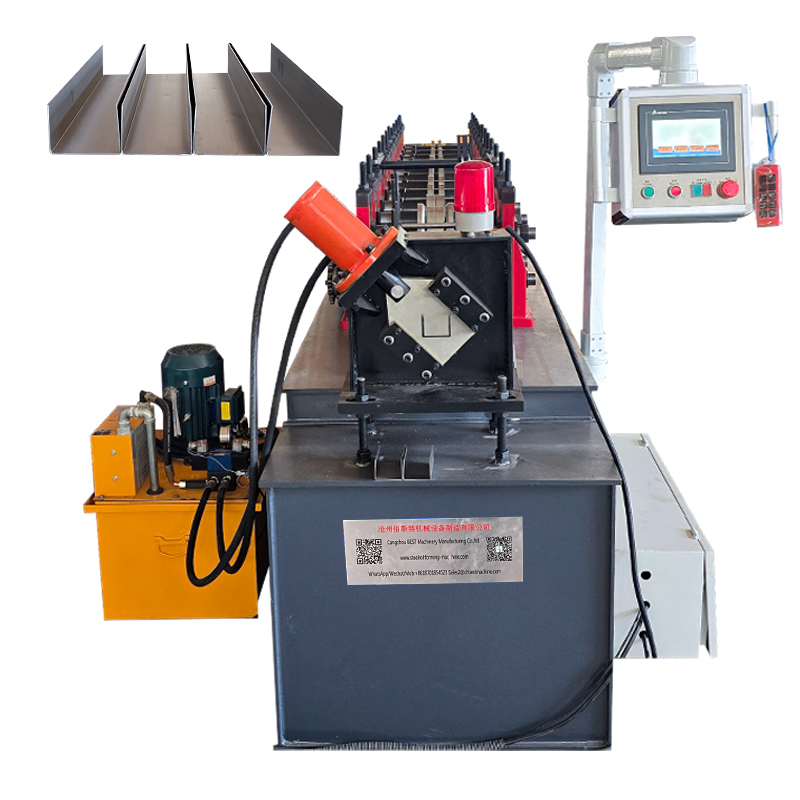

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine
30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine

बड़ी छवि :  30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन हेबेई
ब्रांड नाम: CHBEST
प्रमाणन: CE/BV/SGS
मॉडल संख्या: XY30X50
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: 9500
पैकेजिंग विवरण: नग्न मशीन के लिए प्लास्टिक फिल्म
प्रसव के समय: 30-40 दिन
आपूर्ति की क्षमता: 20 सेट/महीना

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine

वर्णन
प्रोडक्ट का नाम: 30x50 स्टील प्रोफाइल यू ट्रैक पीएलसी नियंत्रण कोल्ड रोल बनाने की मशीन नियंत्रण प्रणाली: स्वीकृति
कटिंग प्रकार: उड़ती हुई आरी गारंटी: 2 साल
जीवनभर: 10 वर्ष रोलर सामग्री: Cr12 मूव
दस्ता सामग्री: 45#स्टील
प्रमुखता देना:

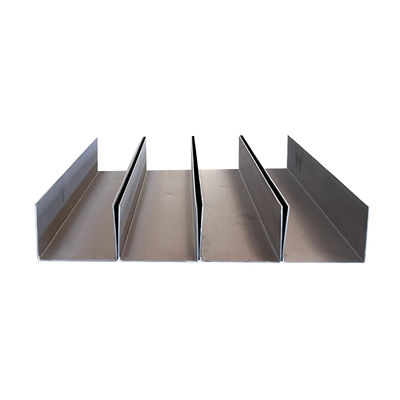

30x50 steel profile U track

,

PLC control roll forming machine

,

cold roll forming machine with warranty

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine





Working flow


Decoiler------feeding------roll forming-------cut to length-----output table



Machine Components



Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1



Parameter



Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 60mm
Feeding Thickness 0.6-1.2mm
Roller Station 10 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 0



Working conditions
1.Machine size 10m x 1.2m (L XW)
2.Working size 20m x 2.5m (LXW)
3.Power supply 8.5kw
4.Frequency 50-60HZ
5.Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8.Lift device 3-5t forklift or crane



30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine 1



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
