उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | छत शीट रोल बनाने की मशीन | मुख्य शब्द: | स्टील प्रोफ़ाइल छत शीट रोल बनाने की मशीन |
|---|---|---|---|
| रंग: | नीला या आपके अनुरोध के रूप में | डिकॉयलर क्षमता: | 5t |
| कटिंग प्रकार: | हाइड्रोलिक | प्रसंस्करण सामग्री: | पीपीजीआई और जीआई |
| जीवनभर: | 10 वर्ष से अधिक | ||

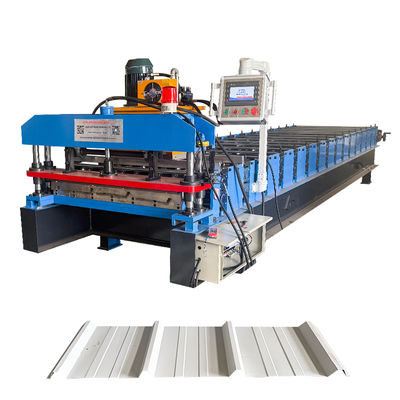

| प्रमुखता देना: | TR4 Design Roofing Sheet Roll Forming Machine,13-22 Forming Stations Roof Panel Roll Forming Machine,5000 kg Decoiler Capacity Metal Roofing Machine |
||
| No. | Name | Qty |
|---|---|---|
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| Item | Parameter Detail |
|---|---|
| Processing Material | GI and PPGI |
| Material thickness | 0.25-0.8mm |
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision |
| Machine siding panel |
Plate type | Pillar type(option) Plate thickness: 20mm | Pillar thickness: 30mm Painting: normal painting | painting: Chroming |
| Forming stations | 13-22 stations (according to the profiles) |
| Machine rollers | High grade No.45 forged steel, plated hard chroming with thickness 0.05mm Processing way: cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
| Machine Shaft | φ70-80mm high grade No.45 steel after treatment |
| Machine spacers | CNC lathing in high-precision |
| Machine bearings | China Haerbin bearing or SKF international bearing (option) |
| Driving system | 1 inch chain or gear box (option) |
| Machine power | 3kw-11kw (according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min (option) |
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
| Type | Details |
|---|---|
| Bearing sliding type |
Blade material: Cr12mov quenching and grinding Frame processing: the whole bottom frame is grinding for high-precision Blade processing: wire-electrode cutting, but the upper blade can not be straight (this is technology) Working: Hydraulic type |
| Type | Manual | Auto (option) |
|---|---|---|
| Length | 1.5m-2m | 6m or 12m |
| Main Item | Parameter Detail |
|---|---|
| PLC | Delta (standard) or according to your request |
| Inverter | China brand (standard) or according to your request |
| Touch screen | Mcgs (standard) or according to your request |
| Encoder | China brand (standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
