उत्पाद विवरण:
|

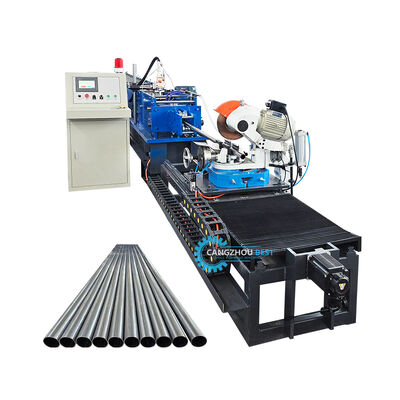

| प्रोडक्ट का नाम: | लेजर वेल्डिंग गोल पाइप बनाने वाली रोल बनाने की मशीन | नियंत्रण प्रणाली: | पीएलसी |
|---|---|---|---|
| गारंटी: | 2 साल | जीवनभर: | 10 वर्ष से अधिक |
| सामग्री: | पीपीजीआई/जीआई | निचला फ्रेम: | 360एच स्टील |
| प्रमुखता देना: | galvanized steel roll forming machine,round pipe making machine,laser welding roll forming machine |
||
| Type | Manual Type (Standard) | Hydraulic Type (Optional) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | Max 5 tons | 5-15 tons |
| Inner Diameter | φ450-550mm | φ450-550mm |
| Outer Diameter | φ1500mm | φ1800mm |
| Type | Mould Type |
|---|---|
| Blade Material | Cr12mov quenching and grinding |
| Frame Processing | Whole bottom frame grinding for high-precision |
| Blade Processing | Wire-electrode cutting (upper blade not straight - technical requirement) |
| Working Type | Hydraulic |
| Type | Manual | Auto (Optional) |
|---|---|---|
| Length | 2 pieces | 6m or 12m |
| Main Item | Parameter Detail |
|---|---|
| PLC | Delta (standard) or according to request |
| Inverter | China brand (standard) or according to request |
| Touch Screen | Mcgs (standard) or according to request |
| Encoder | China brand (standard) or according to request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
| Main Item | Parameter Detail |
|---|---|
| Motor | 3kw China brand or according to request |
| Pump | China brand or according to request |
| Solenoid Valve | China brand or according to request |
| Cooling System | Cooling fan |
