उत्पाद विवरण:
|

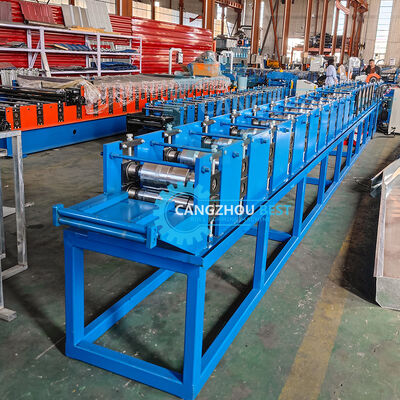

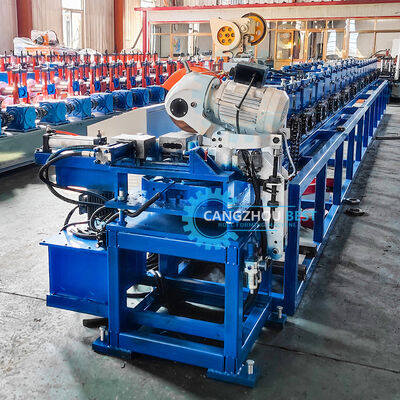

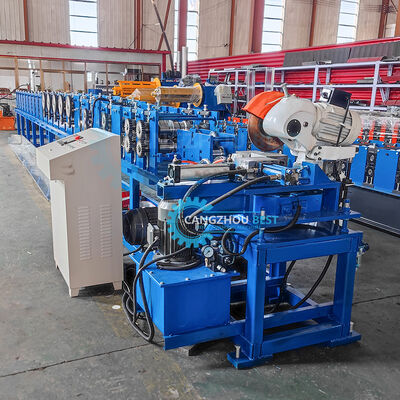

| प्रोडक्ट का नाम: | गैल्वेनाइज्ड स्टील गोल आकार की वॉटर ट्यूब प्रोफाइल बनाने वाली रोल बनाने की मशीन | गारंटी: | 2 साल |
|---|---|---|---|
| मशीन गति: | 4-6 मी / मिनट | द्रव्य का गाढ़ापन: | 0.3-0.8 मिमी |
| संचालित प्रणाली: | चेन या गियर बॉक्स | नियंत्रण प्रणाली: | पीएलसी |
| प्रमुखता देना: | galvanized steel seaming roll forming machine,PLC control square roll forming machine,down spout roll forming machine with warranty |
||
| Raw Material Compatibility | Sheet, galvanized steel sheet, aluminum sheet |
| Material Thickness | 1mm |
| Roller Material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| Shaft Material | High grade NO. 45 carbon wrought steel |
| Cutting Blade | Cr12 mould steel with quenched treatment |
| Shaft Diameter | 70 mm |
| Forming Steps | 16 rows |
| Productivity | 12 m/min |
| Hydraulic Station Power | 22 KW |
| Hydraulic Pressure | 10-12MPa |
| Control System | Famous PLC computer control |
| Cutting Table Material | Cr12 mould steel with quenched treatment |
| Machine Dimensions | 7500mm × 1150mm × 1510mm |
| Hydraulic Oil | 40# hydraulic oil |
| Electrical Requirements | 380V 50 Hz 3 Phase or as required |
| Dimensions | 1700mm × 1000mm × 800mm |
| Feeding Width | 500mm |
| Capacity | 3 Ton |
| Expand & Fight Range | 420mm - 510mm |
| Expand & Fight Mode | Inner expand and fight by manual |
| Feeding Method | Manual |
| Profile Steel Thickness | 0.3-0.8 mm carbon steel and stainless steel |
| Main Motor Power | 2 × 5.5 KW, AC motor, side motor to save space (Brand: Guomao) |
| Voltage/Frequency/Phase | 380V, 50Hz, 3Phase (customizable) |
| Roll Stations | 15 stations + 1 rectify station |
| Roller Material | SAE1045, hardness and chrome plated surface |
| Shaft Diameter | 65 mm material: SAE1045 |
| Forming Speed | 0-18 m/min |
| Transmission | Chain, 1.0 inch double line |
| Hydraulic Power | 5.5kW |
| Working Pressure | 12Mpa adjustable |
| Solenoid Valve | 1 group |
| Hydraulic Oil | 46# hydraulic oil |
| Color | Blue (customizable) |
| Payment Terms | 30% deposit by T/T in advance, 70% balance after inspection confirmation before shipment |
| Delivery Time | Within 50 days after receiving deposit |
