उत्पाद विवरण:
|

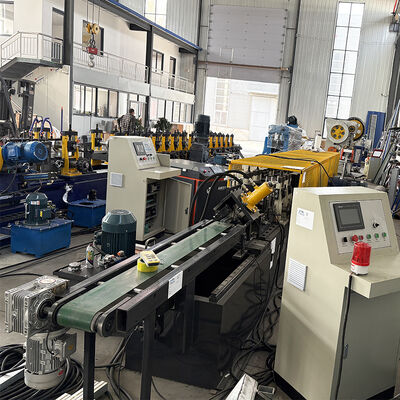

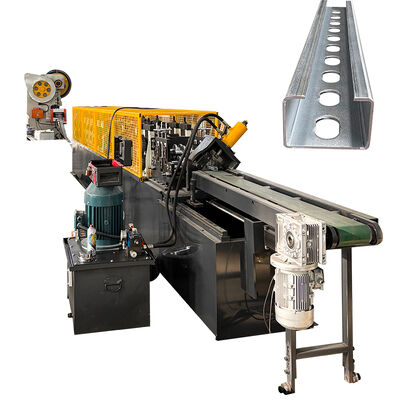

| प्रोडक्ट का नाम: | सी/जेड/यू आकार बनाने के लिए धातु संरचना सी/जेड/यू शहतीर रोल बनाने की मशीन | रंग: | नीला या आपके अनुरोध के रूप में |
|---|---|---|---|
| मशीन गति: | 4-6 मी / मिनट | मशीन आयाम: | 7.5mx1.8mx1.4m |
| मशीन -शक्ति: | 11kw + 5.5kw | संचालित प्रणाली: | चेन या गियर बॉक्स |
| नियंत्रण प्रणाली: | पीएलसी | काटने का प्रकार: | हाइड्रोलिक |
| गारंटी: | 2 साल | जीवनभर: | 10 वर्ष से अधिक |
| प्रमुखता देना: | hydraulic punching C channel machine,purlin roll forming machine with flying cutter,C channel roll forming machine hydraulic |
||
| Component | Quantity |
|---|---|
| De-coiler | 1 set |
| Leveling device | 1 set |

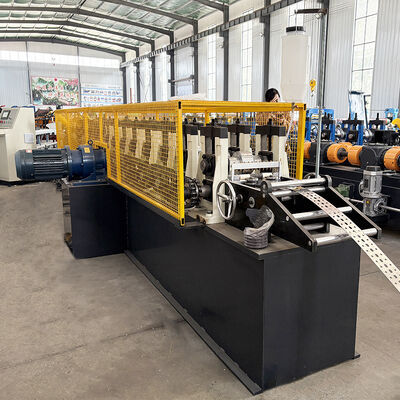

| Forming machine | 1 set |
| Punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
| Parameter | Manual Type (Standard) | Hydraulic Type (Optional) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner Diameter | 450-550mm | 450-550mm |
| Outer Diameter | 1500mm | 1800mm |
| Item | Parameter Detail |
|---|---|
| Processing Material | GI and Black Coils |
| Material Thickness | 1-3mm (standard), 3-5mm (customized) |
| Machine Frame | 360#H steel, diagonal line welding, leveling instrument measurement for high-precision |
| Machine Siding Panel | Plate type: 20mm thickness or Casting Pillar type (optional): 35mm thickness |
| Forming Stations | 15 stations (according to material thickness) |
| Machine Rollers | High grade Gcr15 forged steel, hard quenching and hard chroming (0.05mm thickness) |
| Machine Shaft | φ80-90mm high grade No.45 steel after treatment |
| Machine Spacers | CNC lathing in high-precision and wire-electrode cutting |
| Machine Bearings | China Haerbin bearing or SKF international bearing (optional) |
| Driving System | 2 inch chain or gear box (optional) |
| Machine Power | 7.5kw-22kw (according to size and thickness) |
| Machine Working Speed | Without punching: 8-12m/min or 10-30m/min (optional) |
| Machine Testing Method | Post-installation testing with profile drawing comparison, difference controlled within 0.5mm |
| Item | Parameter Detail |
|---|---|
| Frame Processing | Whole leveling surface made by drilling machine |
| Mould Material | Cr12mov |
| Mould Processing | Wire electrode-cutting for mould shape to save pressure |
| Hole Size | According to customer requirements |
| Hole Number | According to customer requirements |
| Pressure | 20Mpa |
